 808 Car Keys Micro Camera Review
hope it can help your life safe and happiness
happiness
happiness

Innovv C1
Innovv C1 Photowww.Innovv.com

The Innovv C1 Available from the producer of the 808 #11, #18, and #26.  Available about mid November 2013.

Features include:  G-sensor for record-if-motion, standby-if-parked and automatic video 180 flip. Video MOV H.264 16:9 1080p 30fps and 720p 60fps.  Video and audio output via optional cable. PAL & NTSC. Lens 6G glass 2.2mm.  Horizontal field of view 100. Lens M12x0.5, 6 element glass lens, F/ON=2.0, f=2.3mm, diagonal 150, horizontal 100, vertical angle 90. Continuous recording by file segment overwrite.  Uses Micro SD Card up to 32GB. 700mA LiPo battery. Record time 80 min. Charge time 60min.  Night LED. Webcam mode. Record-on-USB-power mode. Date time stamp enable disable. Auto power off. Flicker Frequency 50Hz/60Hz.  Power input at USB connector 5V.  Processor Novatek NT96650.  Image Sensor Aptina AR0330 (3MP).  62x39x18mm.  32 44 grams.
Innovv C2
Innovv C2 PhotoThe Innovv C2 has a different lens and the producer says the lens has "better video quality".  The lens extends out farther.  Horizontal field of view 110.  Lens M12x0.5, 6 element glass lens, F/ON=1.8, f=2.8mm, diagonal 160, horizontal 110, vertical angle 94.

Comment from the Innovv producer:  The initial lens for C1, it has the good video quality, wide angle of view like now the lens for C2, but it is under top plate, a bit easy to get dark on corners on mass production, the change was needed, so we find this bigger lens for C2 which has almost the same angle of the initial lens for C1 but better video quality. And after testing other 12 lens, the end we select the current C1 new lens for its better performance but no a big difference on view of angle.
Innovv C3
Innovv C1, Innovv Action CameraThe Innovv C3 extends the lens 1.5 meter away on the end of a cable.  The lens can be attached to a headset. The C3 is the "world's first mini snake camera".  Available with a 90 or 120 lens.

See these C3 reviews:
Techmoan   BobFlyMan



Innovv Links
Producers website http://www.innovv.com
http://www.rcgroups.com/forums/member.php?u=486977
Reviews 140220 Bobflyman https://www.youtube.com/watch?v=zA1RoQdn7j8
140217 Bobflyman https://www.youtube.com/watch?v=ZfiXPdrX3JQ
140214 Bobflyman https://www.youtube.com/watch?v=8mW6HA00P_4
140122 Bobflyman https://www.youtube.com/watch?v=mQ4NSI9Kcqc
140121 Techmoan  https://www.youtube.com/watch?v=VxvGcI7tRnM
131228 Bobflyman https://www.youtube.com/watch?v=CG3b9EKFy0U
131224 SpyTec    https://www.youtube.com/watch?v=vI82xjjQEhk
RCGroups forums Official support thread for Innovv C1 ActionCam
http://www.rcgroups.com/forums/showthread.php?t=2050181

Innovv C1 1080HD Action Cam - Owners thread - and test videos
http://www.rcgroups.com/forums/showthread.php?t=2050177
Some sellers http://www.innovv.com/#!shop--cart/cg1f
http://joovuu.com/home/75-innovv-c1-camera.html
Sample youtube video Innovv YouTube Channel http://www.youtube.com/channel/UChvhCs9AlRRodfUxUq7pACA
C3 https://www.youtube.com/watch?v=eyT0olj0Plc
Downloadable user-manual and video samples http://www.innovv.com/#!specification/ccn9



140104

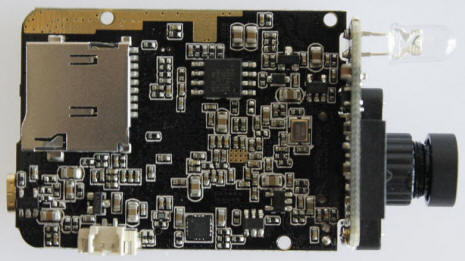

Innovv Internal Photo
Innovv photo by RockThinking




Objective Data
All metrics are subject to change

AOV (Angle Of View), rounded to 1 degree.
Mode FPS Note Aspect
Ratio
Subject width at distance 34 inch
measured
Horizontal
measured
Vertical
calculated
Diagonal
calculated
Equivalent 35mm film lens mm
calculated







2010 XXX XX - XXXXXXXX
